Start the Evolver PlegSE, the PlugSE will automatically search for the Evolver on all available ports. If everything is set up correctly, you should notice the “DSI EVOLVER ON LINE” message. If not, a warning message will inform you about incorrect Evolver Global settings.


NOT CONNECTED message informs you that the PluSE could not find the Evolver on any ports or the Evolver has not responded to MIDI requests.

In such case, check manually the Evolver global setting called: “MIDI SysEx:    ON” just in case it was turned OFF. Please note, you may have to exit the Global settings mode  for change to take effect.

Also, some other warnings may pop up like for example Parameter Send or Receive that are used to control the Evolver in real time.

.

In general, the Evolver Global settings that are relevant for the PlugSE operation should be set as follows:

• MIDI Rec – determines what MIDI data to receive. Used to disable MIDI completely, or to filter out program changes or parameter changes.

Display MIDI Receive Operation:

-OFF No MIDI data received

-ALL All MIDI data received

-pro Only MIDI program changes received (along with note/controller data)

-par Only MIDI parameters received (along with note/controllerdata)

MIDI Rec should be set to ALL

• MIDI Xmit – determines what MIDI data to send. If enabled Evolver will send out changes for all 128 Program Parameters in System.

Display MIDI Transmit Operation:

-OFF No MIDI data sent

-ALL All MIDI data sent

-pro Only MIDI program changes sent

-par Only MIDI parameters sent

MIDI Xmit should be set to ALL

To verify the MIDI SETUP, click on the MIDI button:.



Here you can manually set MIDI In and Out ports and configure other MIDI routings. The “Scan” button runs the same MIDI port scan as a MIDI port scan when the PlugSE was started.

EVOLVER PLUGSE SUPPORT PAGES

The PlugSE VST dll file should be placed in the VST plugins folder. Depending on the VST host that folder could be located in various places on you hard drive. In case of Steinberg’s Cubase this folder is located in the Cubase directory and it is called “Vstplugins”. In Ableton Live the Vst folder can be selected and defined in Preferences.

The PlugSE is designed to serve as a bridge between the host and the Evolver and in principle the Evolver should be connected directly to the PlugSE via MIDI. By default, most of the VST hosts are set to grab all MIDI ports on startup and this may create a connection problem for PlugSE users.

Many MIDI interfaces are not multi-client - this means that ports can be opened and used only by one application at a time. It also means that in practice, after you start the host application the host may first access and open MIDI ports that your Evolver is connected to and prevent the PlugSE from accessing the same ports later on.

Even if your MIDI interface is multi-client and it is connected to the Evolver it is still advisable to deactivate MIDI ports the Evolver is using in the host MIDI setup in order to avoid double MIDI messages being send or received. The PlugSE will handle all MIDI messaging and the connection between the Evolver MIDI and the host is not needed.

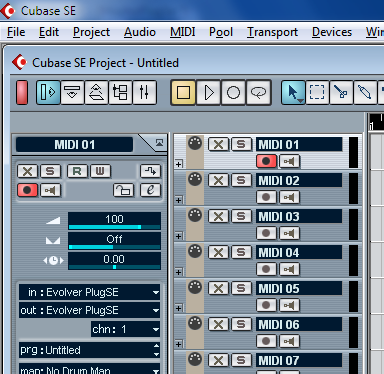

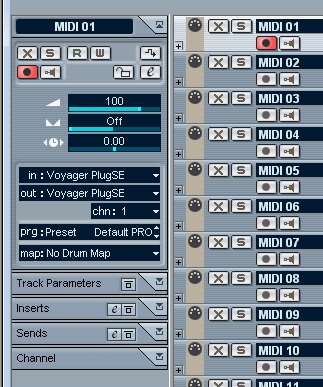

In Track Inspector you can select Evolver PlugSE for IN and OUT. This will allow to record and playback notes, pitch wheel, modulation and other MIDI data.

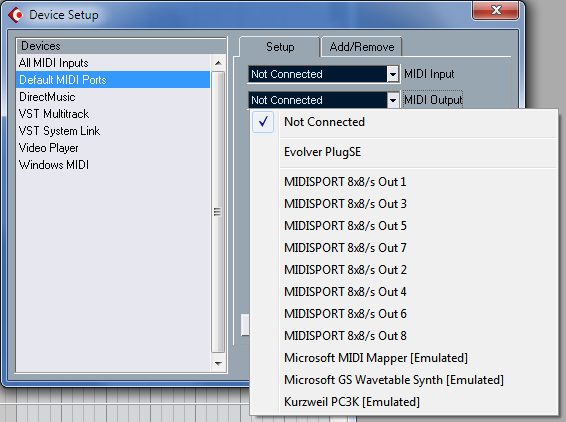

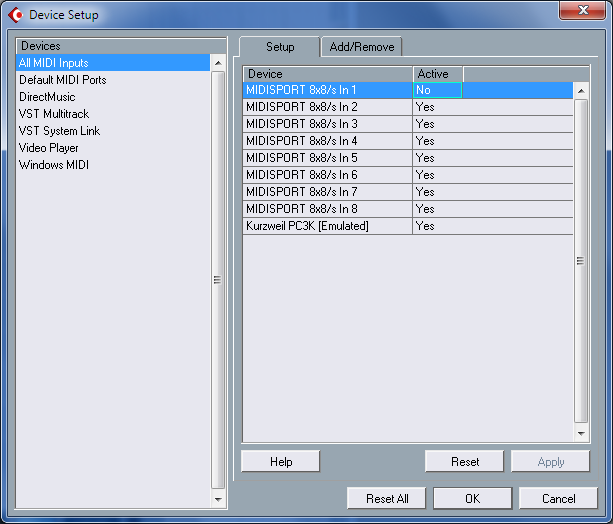

For example, we have our Evolver connected to MIDISPORT 8x8 ports 1 IN and OUT. We want to make sure that Cubase does not access those ports so we need to deactivate them in the Device Setup.

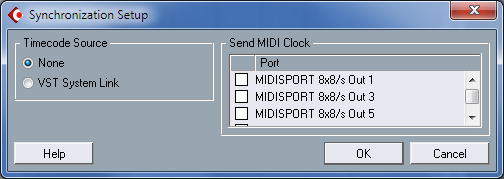

Also, Synchronization Setup should be checked if Cubase does not sent MIDI clock to our MIDISPORT port 1:

Cubase:

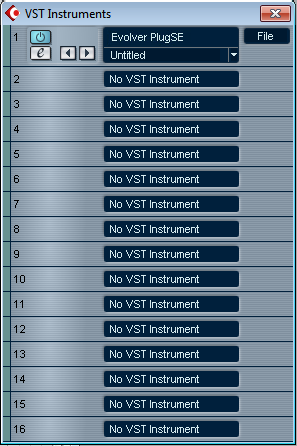

From “Devices” menu select “VST Instruments” and load the Evolver PlugSE.
