MIDI SETUP

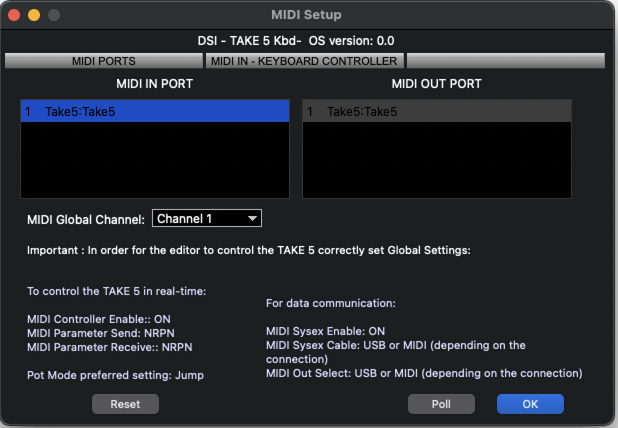

The MIDI setup window (Command+M) can be found under the MIDI window menu. In the MIDI Setup window, select the MIDI IN and OUT ports to which the TAKE 5 is connected and set the MIDI Channel to match the MIDI channel on the TAKE 5.

Once the proper ports and MIDI channel are selected, you should see the current TAKE 5 software version at the top of the MIDI Setup window as shown. This confirms that the editor is communicating with the Sequential TAKE 5.

To establish a proper MIDI communication. Make sure that the Global Parameters are set MANUALLY (not through the computer) on TAKE 5 as follows.

To control the TAKE 5 in real-time:

MIDI Controller Enable:: ON

MIDI Parameter Send: NRPN

MIDI Parameter Receive:: NRPN

For data communication:

MIDI Sysex Enable: ON

MIDI Sysex Cable: USB or MIDI (depending on the connection)

MIDI OUT: USB or MIDI (depending on the connection)

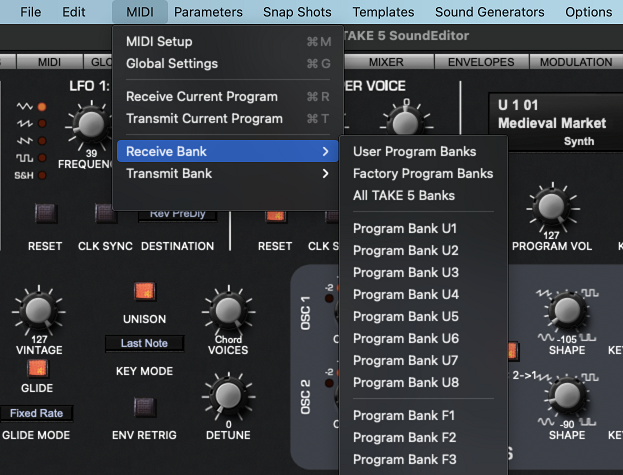

MIDI WINDOW MENU

Here you can access all functions that will enable the editor to communicate with the TAKE 5  and sync the data by receiving all banks.

In the MIDI Setup you can configure which MIDI ports should be used to communicate with TAKE 5.

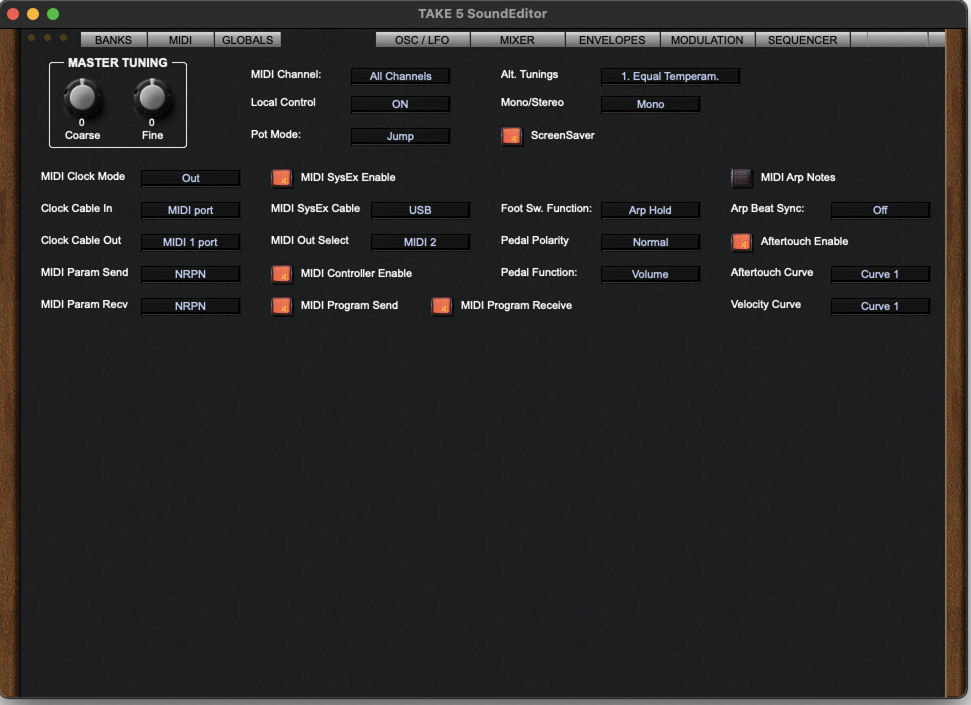

Global Settings panel lets you view all TAKE 5 Globals.

Important. Changes made by the editor are not saved automatically on TAKE 5.

To write global settings changes you need to enter and exit Globals mode directly on the TAKE 5 panel.
